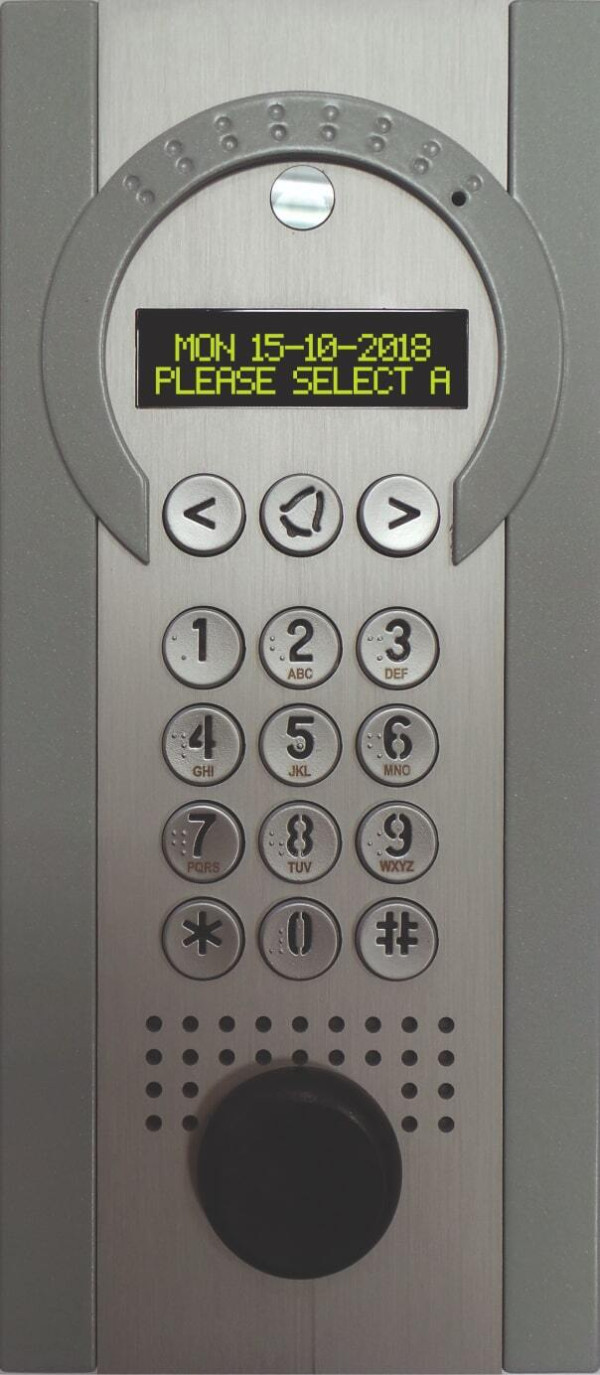

RENO / VIDEO INTERCOM
The perfect retro-fit for renovation projects
- Surface-mounted for easy installation
- Discreet LCD display
- Invisible integrated pinhole camera
- Built-in proximity reader
- Available in 3 colours
Key Benefits
Click on areas of interest to interact

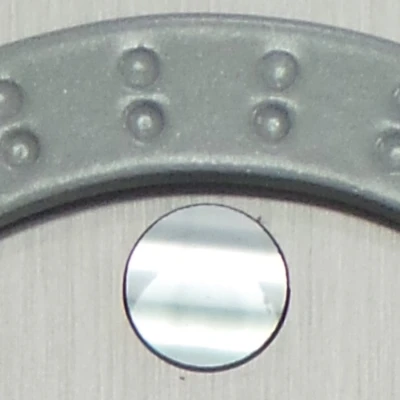

Light Sensor for Auto-Brightness
Screen brightness is adjusted automatically, so everything is visible in daylight, and you’re not blinded at night.

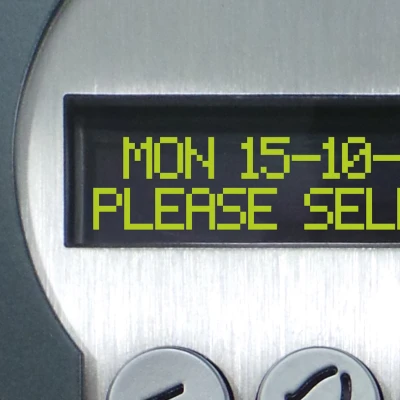

Bright High Contrast LCD Screen
With a bright scrolling screen to share information, no one is left in the dark.

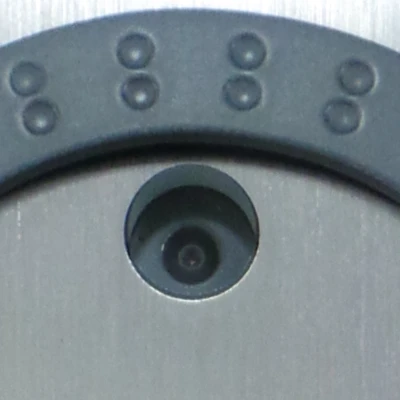

Invisible Pinhole Camera
Because what vandals can’t see, they can’t vandalise.
Resident-Search Function
You can use the SC-01’s scrolling menu to search by flat number or even by resident name, if provided.

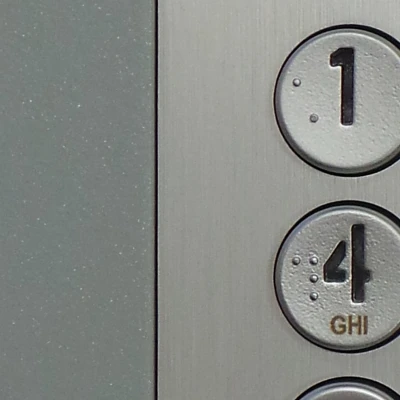

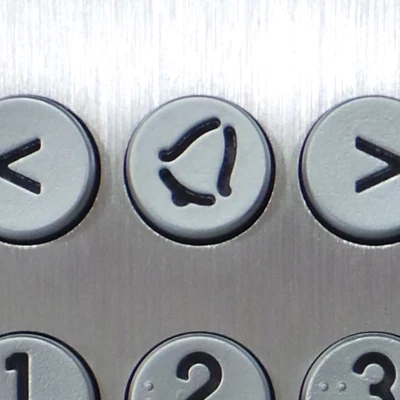

12 Elegant Backlit Keys
Visitors now have no excuse for pressing the wrong button.

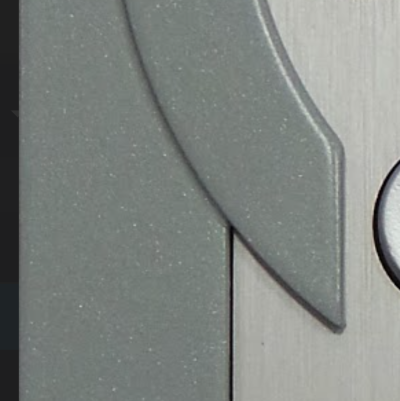

Optional Finishes
Choice of 3 finishes Anthracite / Silver Light grey / Silver Gold

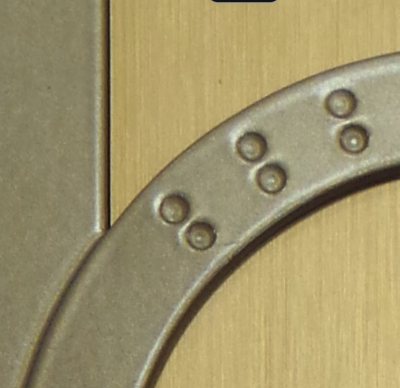

Accessibility Guaranteed
Braille comes as standard, and a built-in proximity reader assists those that need their hands for stability.

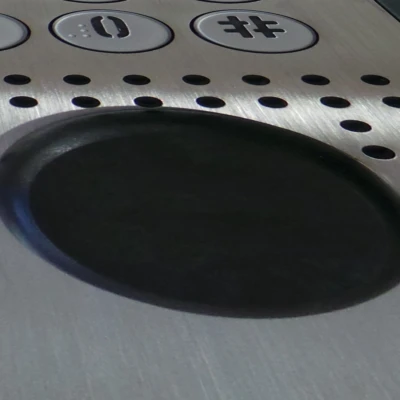

Proximity Reader
Trigger access from up to a metre away with the SC-01’s built in proximity reader.
Vandal Resistant
With it’s durable thermoplastic construction the SC-01 is as tough as they come.
Backlit LCD display
Yes (2 lines 16 characters)
Pinhole Camera
Yes
Coded keyboard
Yes
Finishing
3 colors available: Anthracite / Silver – Light gray / Silver – Gold / Gold
Proximity reader
Yes
Installation (Characteristics)
Built-in
Audio system
Yes
Video system
Yes
Braille key
Yes
Management mode
In real time
Programming
Via www.intratone.info
Number of doors managed with 1 door control unit 03-0102
1 or 4 with addition of a relay card 12-0110
Number of doors managed with 2-door central unit 03-0101
2 or 4 with addition of an expansion card 12-0109
Max number of keyboard codes
40
Max number of telephone code
10
Max number of services
30
Call sheet display (apartment) on time slot
Yes
Simplified call for visually impaired and elderly people
Yes
Self diagnosis
Yes
Disturbance comfort (prevention of repetitive calls)
Yes
Timestamped events
Yes
Annual clock
Yes
Editable greeting
Yes
Functional messages
Yes
Free access time slots
Yes
Accelerated alphabetical search
Yes
Sound level adjustment without disassembly
Yes
Automatic call forwarding in case of no answer
Yes
RTC wired network
With 1-door central unit 03-0102: No
With 2-door central unit 03-0101: Yes
With 2-door central unit 03-0101: Yes
Vocal synthesis
Yes
Dimensions
Intercom: 120 x 270 x 15 mm
Flush-mounted pan: 96 x 244 x 45 mm
Flush-mounted pan: 96 x 244 x 45 mm
Net weight in Kg
Intercom only: 2.00
Intercom, central and module: 4.00
Intercom, central and module: 4.00
Power supply
12/24V DC – 2.5A mini
Wiring with a 1-door
control unit (03-0102)
control unit (03-0102)
Module – Central:
4 wires (2 twisted pairs)
Ø8/10th – max 200 m
Central – Intercom:
4 wires (2 twisted pairs)
Ø8/10th – max 20 m
Intercom – Module:
4 wires (2 twisted pairs)
Ø8 /10th – max 200
4 wires (2 twisted pairs)
Ø8/10th – max 200 m
Central – Intercom:
4 wires (2 twisted pairs)
Ø8/10th – max 20 m
Intercom – Module:
4 wires (2 twisted pairs)
Ø8 /10th – max 200
Wiring with a 2-door
central unit (03-0101)
central unit (03-0101)
Module – Central:
6 wires (3 twisted pairs)
Ø8/10th – max 200
Central – Intercom:
6 wires (3 twisted pairs)
Ø8/10th – max 200
Intercom – Module:
2 wires (1 twisted pair)
Ø8/ 10th – max 100
6 wires (3 twisted pairs)
Ø8/10th – max 200
Central – Intercom:
6 wires (3 twisted pairs)
Ø8/10th – max 200
Intercom – Module:
2 wires (1 twisted pair)
Ø8/ 10th – max 100
Operating environment
-20°C to 70°C
Storage environment
-20°C to 70°C
Protection
IP55
